Anti tilt labels must be kept upright during transportation or processing equipment

Release date:2021-08-30 09:13:27

Anti tilt labels must be kept upright during transportation or processing equipment

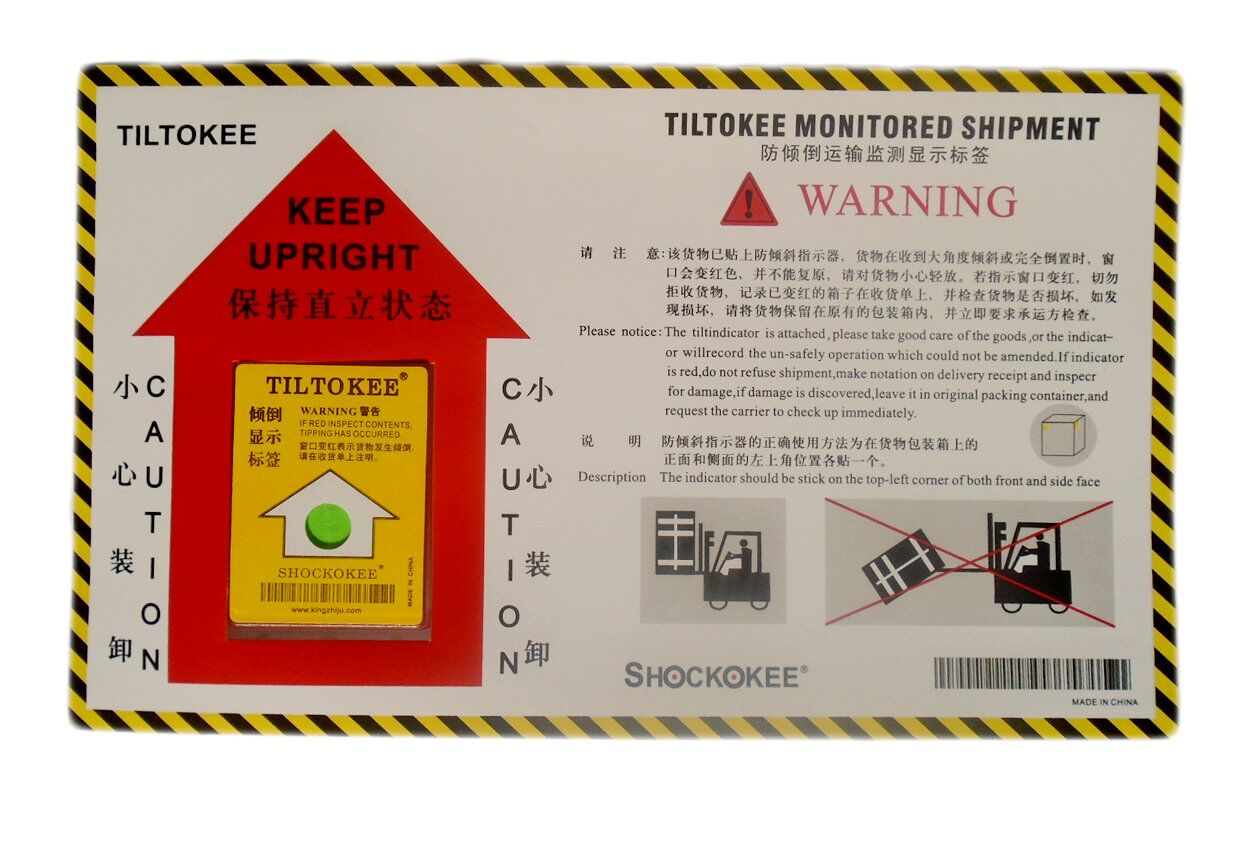

Anti tilt labelFor certain equipment that must be kept upright during transportation or processing, label it withAnti tilt labelIt is to remind the processor to keep the equipment upright, which may lead to accidental tilting accidents, and to indicate and record the occurrence of the situation. If the protected device tilts more than 80 degrees from an upright angle, the displayed small circular window will change from silver (green) to red to record and display tilting accidents. Properly affix tilt warning labels The best pasting position is in the bottom left or bottom right corner of the item; The worst position is at the top corner of the luggage compartment.

Anti tilt labelTiltokee tilt indicators can simply display whether the goods have been tilted, laid horizontally or inverted during transportation or storage, and constantly monitor whether the storage of the goods meets storage requirements, effectively preventing and reducing damage to the goods during transportation.

working temperature

-40° F\/-40° Creach+140° F\/+60° C

Humidity allowable range

5%reach99%Non coagulation

size

7.4cm x 5.9cm x 0.5cm

Activate angle

Deviation from vertical direction80°+\/- 5%

Monitoring scope

Single plane

assembly

Hard polystyrene bracket, stainless steel indicator

install

Press sensitive adhesive or drill holes to pass through screws, nails, or staples

adhesive

fiveMil thick and viscous acrylic adhesive

Shelf life

After deliverytwoWithin the year

Scope of product application
Anti tilt labelIt is a better choice for those who require the goods to remain upright and intact during transportation, and constantly monitor whether the storage of the goods meets the storage requirements. TiltOKEE is a friend of the carrier, and normal vibrations do not activate it, even at acute takeoff angles. Therefore, most of them are applied to large precision components, refrigeration equipment, large computer systems, top heavy equipment, network information systems, electronic communication equipment, medical equipment, large glass products, and other goods that have strict requirements for storage location and placement direction during transportation. Such as controlling and monitoring the transportation of heavy machinery, large computer equipment, circuit boards, large batteries, hydraulic presses, and other product hosts.
Product packaging and warehousing

Usage

Anti tilt labelStick on the outer box containing products that are prone to tilting;

Anti tilt labelMust be used in pairs and placed adjacent to the two sides of the product outer box;

The bill of lading indicates that all transported goods are labeled with this surveillance label;

The correct placement is necessary to activate the anti tilt sticker.

packing

The tilt indicator is packaged in cardboard boxes, with 100pcs per box as the minimum unit, and then 10 boxes are packed into a large box.

Our company will provide you with comprehensive consulting services and timely customer support, evaluate your needs and explore successful strategies together with you, help you develop a complete set of work procedures and ensure their successful implementation.

transport

Try to place the anti tilt indicator label in the original box for transportation, and during packaging, keep the product tightly attached to avoid collision during transportation. Also, try to avoid throwing the box vigorously and handle it with care to avoid incorrect activation.

storage

Please do not disassemble and keep the product intact; Once the protective paper is removed, the product will be activated at any time;

Due to the unique properties of the product, please handle it with care;

Validity period: 2 years after delivery
